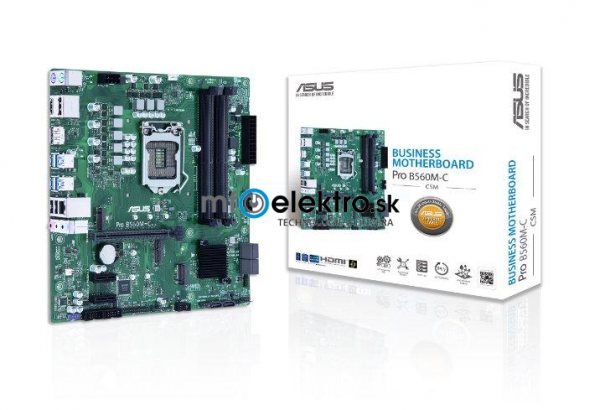

MB socket Intel ASUSPRO B560M-C/CSM soc.1200 B560 DDR4 mATX M.2 HDMI DP

MicroATX B560 business motherboard with enhanced security, reliability and manageability Intel® LGA 1200 socket: Ready for 11th Gen Intel® Core™ processors ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup Supports SMBUS header that connects to a DASH LAN for remote IT management ASUS COM debug header for more efficient troubleshooting Innovative moisture-resistant coating to protect the motherboard from harsh environments Event log for capturing and managing detailed system information Commercial BIOS kit for faster and more efficient customization ASUS Control Center Express (ACCE) for easier IT endpoint management Ultrafast connectivity: PCIe® 4.0 and Intel® 1 Gb Ethernet CPU Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® 14nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® B560 Chipset Memory Memory Channels:4DDR4 (Dual channel) Max Memory Size:128GB DDR4 4600(OC)/4400(OC)/4266(OC)/4000(OC)//3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. Graphics 2 x DisplayPort 1.4 1 x HDMI™ 2.0*** * Graphics specifications may vary between CPU types. ** Intel® 11th & 10th processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates. *** Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates. Expansion Slots Intel®11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot (support x16 mode) - Intel® 11th processors support PCIe 4.0 x16 mode - Intel® 10th processors support PCIe 3.0 x16 mode Intel® B560 Chipset 2 x PCIe 3.0 x1 slots Storage Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel® 11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel® B560 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)* 6 x SATA 6Gb/s ports * When a device in SATA mode is installed on the M.2_2 socket, SATA6G_2 port cannot be used. Ethernet 1 x Intel® I219-V 1Gb Ethernet Wireless & Bluetooth M.2 slot only (Key E, CNVi & PCIe) *Wi-Fi module is sold separately. USB Rear USB:Total 6 ports 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 5 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports 1 x USB 2.0 header supports additional 1 USB 2.0 port Audio ALC887/897 - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback " *A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output. Back Panel I/O Ports 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 2 x DisplayPort 1 x HDMITM port 1 x M.2 slot (Key E) 1 x Intel® I219V 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 keyboard (purple) port 1 x PS/2 mouse (green) port Intrernal I/O Connectors Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports 1 x USB 2.0 header supports additional 1 USB 2.0 port Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x LPT header 1 x Mono-out header(with Amp IC) 1 x SMBUS header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header Special Features ASUS EZ DIY - Box Headers Bespoke Motherboard Design & Business Focused Features : - ASUS Self Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS kit - Anti-Moisture - 24/7 Reliability - Overcurrent Protection Software Features ASUS Exclusive Software IT Management software supported - ASUS Control Center Express(ACCE) BIOS 128Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 SSD screw package 1 x M.2 Key E screw package Installation Media 1 x Support DVD Documentation 1 x ACC Express Activation Key Card 1 x User manual Operating System Windows 10 64bit Form Factor microATX 24.4cm x 24.4cm
