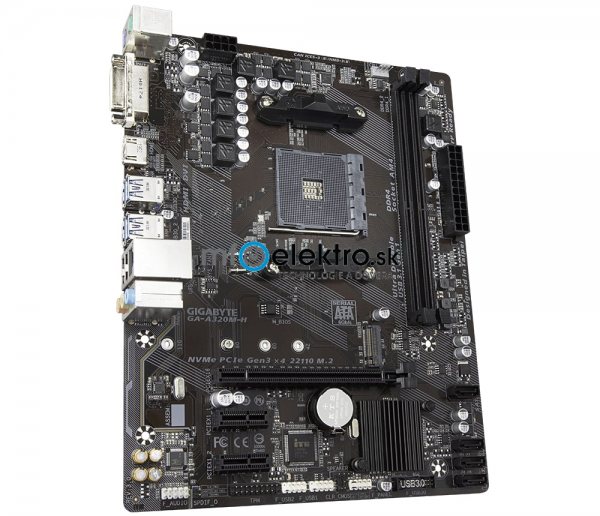

MB socket AMD GIGABYTE A320M-H (rev. 3.x)

Chipset: AMD A320
Rozměrový formát: mATX Form Factor (244 mm x 195 mm)
Podpora pro procesory: AM4 Socket: Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Gen A-series/ Athlon X4 Processors
Patice procesoru: AM4
Pozice na paměti: 2x DDR4 DIMM
Podpora pro paměti: *DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules
Max.velikost operační paměti: 64 GB
Podpora pro paměti typu: DDR4 *ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) *Snon-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules *Extreme Memory Profile (XMP) memory modules
Grafická karta: Integrated Graphics Processor (na základě procesoru) *1x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz *1x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
Zvuková karta: *Realtek® audio codec
Síťová karta: *Realtek® GbE LAN chip (10/100/1000 Mbit)
Rozšiřující sloty: *1x PCI Express x16 slot, running at x16 (PCIEX16) *2x PCI Express x1 slots
RAID řadič: 0, 1, 10
SATA: *4x SATA 6Gb/s connectors
M.2: *1x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2(Note) SSD support)
USB: *
zadní USB porty ( celkem 6 ) *2x USB 2.0/1.1 ports *4x USB 3.1 Gen 1 ports *
přední USB porty ( celkem 6 ) *4x USB 2.0/1.1 ports *2x USB 3.1 Gen 1
Interní porty: *1x 24-pin ATX main power connector *1x 8-pin ATX 12V power connector *1x CPU fan header *1x system fan header *1x M.2 Socket 3 connector *4x SATA 6Gb/s connectors *1x front panel header *1x front panel audio header *1x S/PDIF Out header *1x USB 3.1 Gen 1 header *2x USB 2.0/1.1 headers *1x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only) *1x speaker header *1x Clear CMOS jumper *1x chassis intrusion header
Externí porty: *1x PS/2 keyboard port *1x PS/2 mouse port *1x DVI-D port *1x HDMI port *4x USB 3.1 Gen 1 ports *2x USB 2.0/1.1 ports *1x RJ-45 port *3x audio jacks (Line In, Line Out, Mic In)
BIOS: 128 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Stránka výrobce: https://www.gigabyte.com/Motherboard/GA-A320M-H-rev-3x
