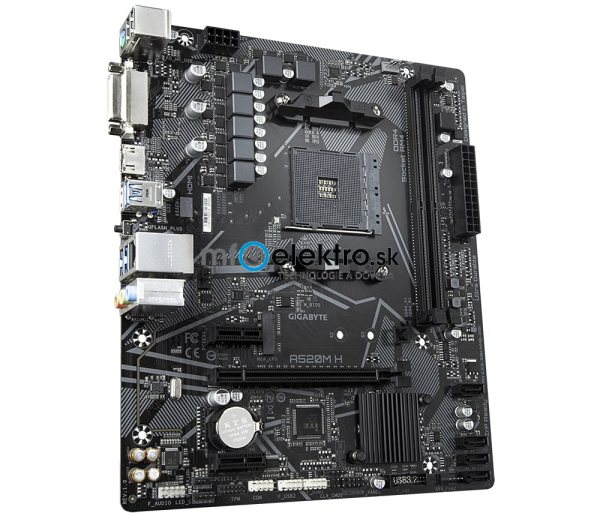

MB socket AMD GIGABYTE A520M H (rev. 1.0)

Chipset: AMD A520
Rozměrový formát: Micro ATX Form Factor (244 mm x 205 mm)
Podpora pro procesory: Support for 3rd Generation AMD Ryzen™ processors/ 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors
Patice procesoru: AM4
Pozice na paměti: 2x DDR4 DIMM
Podpora pro paměti: *
3rd Gen AMD Ryzen™ Processors: Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules *
3rd Gen AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Max.velikost operační paměti: 64 GB
Podpora pro paměti typu: DDR4 (Dual Channel) *ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules *non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules *Extreme Memory Profile (XMP) memory modules
Grafická karta: Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors (na základě CPU)
Zvuková karta: *Realtek® ALC887 codec
Síťová karta: *Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
Rozšiřující sloty: *1x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 *2x PCI Express x1 slots, supporting PCIe 3.0
RAID řadič: 0, 1, 10
SATA: *4x SATA 6Gb/s connectors
M.2: *1x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
USB: *
zadní USB porty (celkem 6) *4x USB 3.2 Gen 1 ports *2x USB 2.0/1.1 ports *
přední USB porty (celkem 6) *2x USB 3.2 Gen 1 ports *4x USB 2.0/1.1 ports
Interní porty: *1x 24-pin ATX main power connector *1x 8-pin ATX 12V power connector *1x CPU fan header *2x system fan headers *1x addressable LED strip header *1x RGB LED strip header *1x M.2 Socket 3 connector *4x SATA 6Gb/s connectors *1x front panel header *1x front panel audio header *1x speaker header *1x USB 3.2 Gen 1 header *2x USB 2.0/1.1 headers *1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) *1x serial port header *1x chassis intrusion header *1x Clear CMOS jumper
Externí porty: *1x PS/2 keyboard/mouse port *1x DVI-D port *1x HDMI port *4x USB 3.2 Gen 1 ports *2x USB 2.0/1.1 ports *1x Q-Flash Plus button *1x RJ-45 port *3x audio jacks
BIOS: 1x 128 Mbit flash
Stránka výrobce: https://www.gigabyte.com/Motherboard/A520M-H-rev-10
